Conveyors & Lifters

We manufacture several types of conveyors and elevators / Lifters based on standard models or according to facility needs.

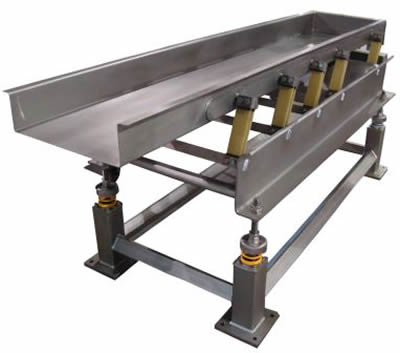

A. Vibratory conveyors (shaking conveyors)

vibratory conveyors

Vibratory conveyors offer many advantages over other methods of horizontal conveying including increased safety, reduced maintenance, spillage elimination, improved sanitation and energy efficiency. In addition, sanitary vibratory conveyors provide more even product delivery to other processing equipment verses other types of conveyors.

It is the most frequent option to tranfer tree nuts such as almonds and pistachios. We mosty use this type of conveyor when we have to deal with the shell and the meat of the nuts.

Capacity: 100 - 6.000 kg / h

Material is painted steel or Stainless steel.

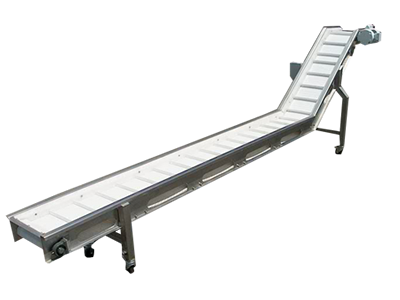

B. Belt conveyors

belt conveyors

It is a more gently way of transporting the nuts. We mostly use it in walnut conveying.

Capacity: 200 - 2.000 kg / h

Material is painted steel or Stainless steel.

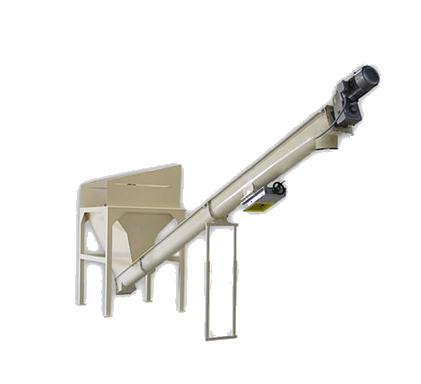

C. Screw conveyor

screw conveyors

A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move the granular materials. They are used in many bulk handling industries.

Capacity: 500 - 10.000 kg / h

Material is painted steel or Stainless steel.

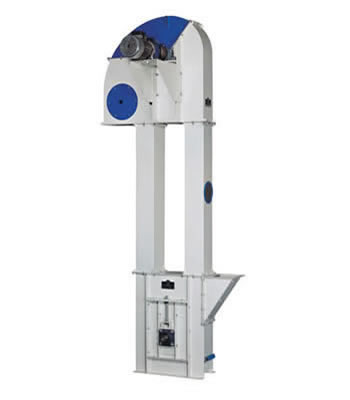

A. Simple bucket elevators

bucket elevetor

One of the most efficient ways to elevate bulk materials vertically is with a bucket elevator. A Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material.

Capacity: 500 - 6.000 kg / h

Material is painted steel or Stainless steel.

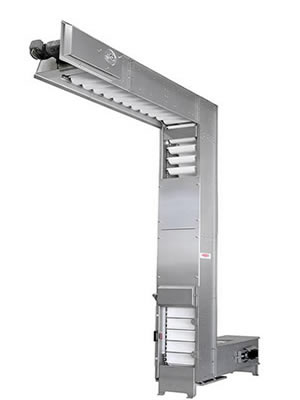

B. Z type elevators

z type elevator

It is a more gently way of transporting the nuts. The Z Type Bucket Elevators are ideal for silent operation and almost every type of food-packaging. We mostly use it in walnut conveying.

Capacity: 500 - 4.000 kg / h

Material is painted steel or Stainless steel.
